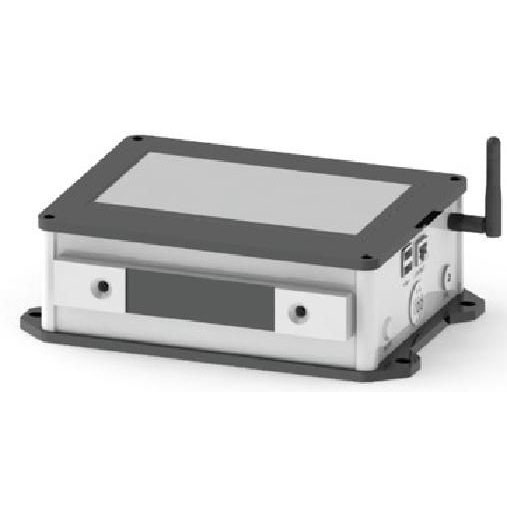

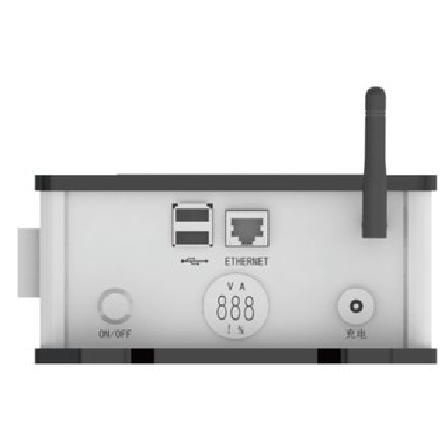

Pack Cell Voltage Display Tooling

1.Pack Cell Voltage Display Tooling introduction

This product communicates with the battery pack through the can cable to collect the cell temperature and cell voltage of the battery pack.

2.Application  occasion

It is suitable for real-time observation and collection of data on monomer voltage and monomer temperature.

3.Functional  features

● Support data acquisition of daisy-chained 1818 and 6830 signals (can support customization of other daisy-chain protocols)

● Capable of collecting single cell temperature and single cell voltage of battery packs

● Real-time file recording

During the data acquisition process,you can record files, and the recorded files can be seen in the file management at a certain time.

● Files can be exported from a USB flash drive

Real-time recorded files can be exported to a USB flash drive to view the real-time data in an excel sheet on your computer. It is also possible to export blf files for data playback.

● The device supports switching between English and Chinese.

4.Technical Parameters
