Product Description

Specifications

Yunhai Specifications

Dimension & Weight
Model	PHEV 60KM	PHEV 140KM	EV 500KM	EV 600KM

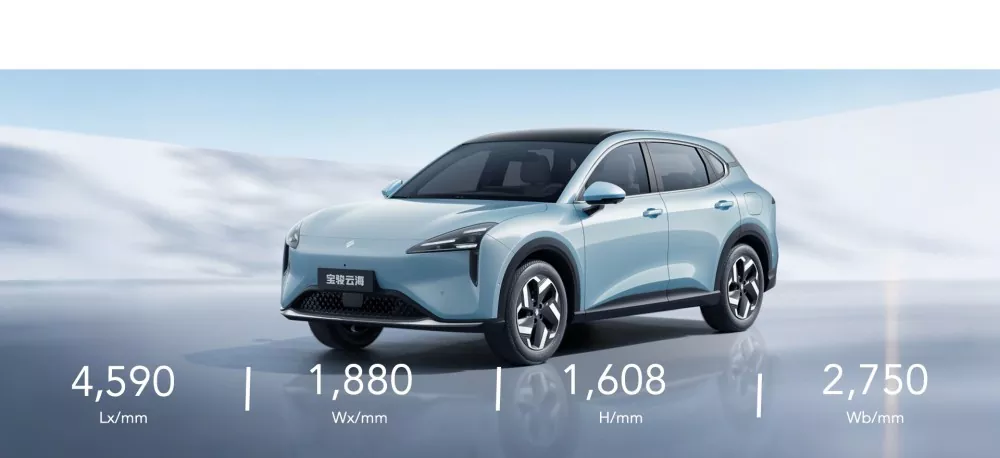

L/W/H (mm)	4590/ 1880/1608	4590/ 1880/1608	4541/ 1880/1608	4541/ 1880/1608
Wheel Base(mm)	2750	2750	2750	2750
Tread (mm)	1615/1615	1615/1615	1615/1615	1615/1615
Ground Clearance(Laden mm)	140	140	140	140
Engine/Motor/Battery
Battery Capacity(kwh)	9.5/20.5	9.5/20.5	56.7/69.2	56.7/69.2
Peak Power (kw/r/min)	78+150	78+150	150	150
Peak Torque (N.m/r/min)	130+310	130+310	310	310
Driving Type	FF	FF	FF	FF
CLTC Range(km)	60/140	60/140	500/600	500/600
Charging(AC SOC 20%-100%)	3.5h/6.5h	3.5h/6.5h	9h/10.5h	9h/10.5h
Charging(DC fast change SOC 30%-80%)	-/30min	-/30min	20min	20min
Chassis & Capacity
Steering	EPS	EPS	EPS	EPS
Brakes	Front Disk & Rear Disk	Front Disk & Rear Disk	Front Disk & Rear Disk	Front Disk & Rear Disk
Suspension (front)	McPherson Stru.	McPherson Stru.	McPherson Stru.	McPherson Stru.
Suspension (rear)	Independent	Independent	Independent	Independent
Tire	225/55R18	225/55R18	225/55R18	225/55R18
Seating Capacity	5	5	5	5
Fuel Tank (L)	53	53	-	-
Max Speed (km/h)	170	170	170	170
Gradability	≥30%	≥30%	≥30%	≥30%
Charging & Battery
Battery Heating	●	●	●	●
Battery Cooling	●	●	●	●
DC Fast charging	-	●	●	●
Safety Equipment
ESC+ABS+EPB+TPMS	●	●	●	●
Dual Frontal Airbags	●	●	●	●
Side Airbags+Side Curtain	●	●	●	●
Ultrasonic radar-12 points	●	●	●	●
Electrical Data Recorder	●	●	●	●
Exterior & Interior Equipment
Premium Alloy Wheel	●	●	●	●
LED Lens Headlamps	●	●	●	●
Rear Fog Lamp	●	●	●	●
LED DRL	●	●	●	●
PVC Seat	●	●	●	●
Second Row 40/60 Seat w/ back	●	●	●	●
8.8”cluster	●	●	●	●
Comfort Equipment
EPS	●	●	●	●
Auto A/C	●	●	●	●
Keyless Entry	●	●	●	●
6-way Power Seat+ 4-way Manual Co-driver Seat	●	●	●	●
Power Co-driver Seat & Front Seat heating & Ventilation	○	○	○	○
1 Flat Key + 1 Intelligent Keys	●	●	●	●
Intelligent driving Package(AEB+FCW+RCW+LDW+BSD)	●	●	●	●
USB/Type-C Socket(Front 3+Rear 1)	●	●	●	●
Entertainment Equipment
360 Degree Reversing Image	●	●	●	●
180 Degree Transparent Chassis	●	●	●	●

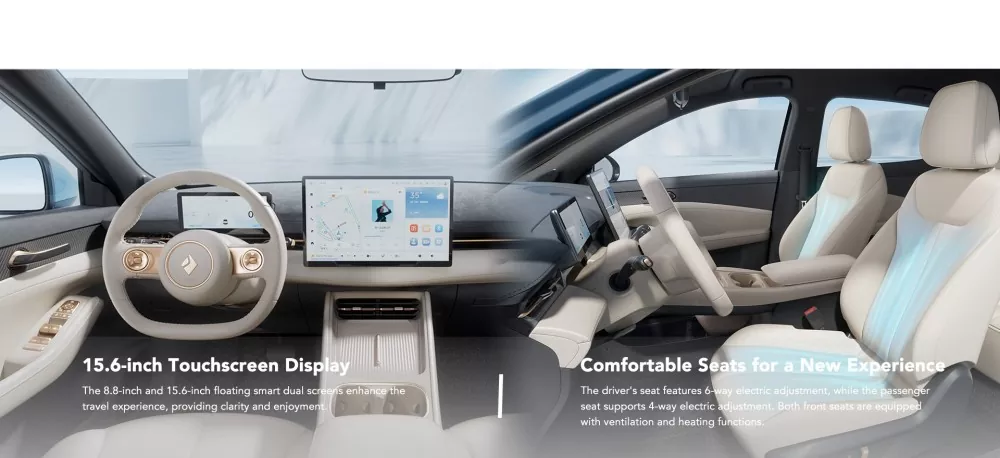

15.6”screen+Radio+USB +Bluetooth + TBOX	●	●	●	●
Radio+USB +Bluetooth+Wifi+Car Network	-	-	●	●

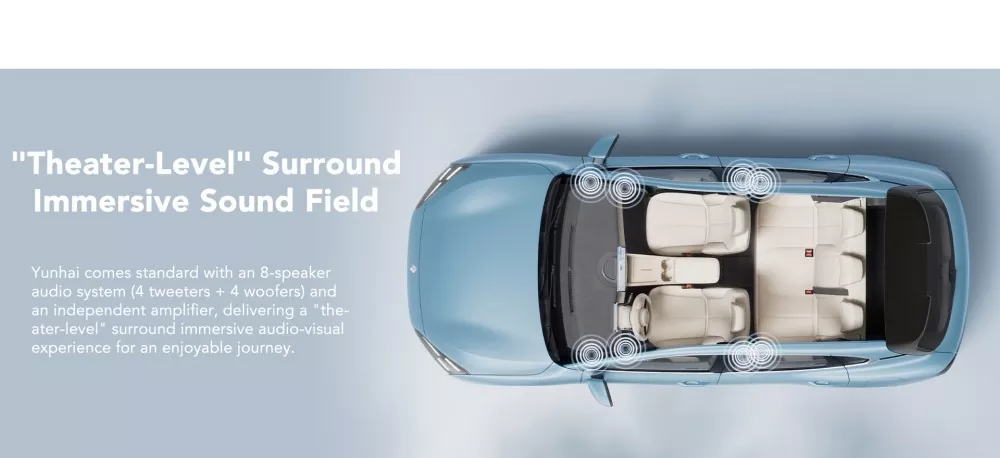

Speaker	8	8	8	8
