The ARCFOX Alpha T5 is powered by a 200kW single electric motor and equipped with a CATL ternary lithium-ion battery pack, achieving a maximum driving range of up to 660 kilometers. It also supports 800V high-voltage ultra-fast charging technology, enabling a driving range of 260 kilometers after just 10 minutes of charging.
ARCFOXαT5 2024 520 MAX |
ARCFOXαT5 2024 660 MAX |
|
Basic parameters |
||
Maximum power (kW) |
185 |
200 |
Maximum torque (N · m) |
360 |
360 |
Body structure |
5 door 5-seater SUV |
|
Electric motor (Ps) |
252 |
272 |
Length * Width * Height (mm) |
4690*1936*1650 |
|
Official 0-100km/h acceleration (s) |
7.5 |
7.5 |
Maximum speed (km/h) |
180 |
180 |
Whole Vehicle Warranty |
●Three years or 120000 km |
|
Warranty policy for the first owner |
●Three years or 120000 km |
|
Curb weight (kg) |
1980 |
1975 |
Maximum Laden Mass(kg) |
2430 |
2425 |
motor |
||
Front motor model |
TZ220XS645 |
TZ220XS646 |
Motor type |
permanent magnet/synchronous |
|
Total power of electric motor (kW) |
185 |
200 |
Total horsepower of electric motor (Ps) |
252 |
272 |
Total torque of electric motor (N-m) |
360 |
360 |
Maximum power of front motor (kW) |
185 |
200 |
Maximum torque of front motor (N-m) |
360 |
360 |
Number of driving motors |
Single motor |
Single motor |
Motor layout |
Front |
Front |
Battery type |
●Lithium iron phosphate battery |
●Triple lithium battery |
Cell Brand |
●CATL |
●CATL |
Battery-specific technology |
Aurora cells |
Aurora cells |
Battery cooling method |
Liquid cooling |
|
CLTC electric range (km) |
520 |
660 |
Battery energy(kWh) |
65 |
79.2 |
Power consumption per 100 km (kWh/100km) |
14.7 |
13.9 |
The warranty policy of the first owner of the three electric vehicles |
●There is no limit to the number of years/mileage of the first owner |
●There is no limit to the number of years/mileage of the first owner |
Fast charging function |
Support |
|
Fast Charging Power (kW) |
160 |
230 |
High-voltage fast charging |
— |
Support |
High Voltage Platform (V) |
— |
800 |
Battery fast charging time (hours) |
0.38 |
0.28 |
Battery slow charging time(hours) |
5.6 |
6.5 |
Battery fast charge range (%) |
30-80 |
30-80 |
Location of fast charging port |
The left rear side of the vehicle |
The left rear side of the vehicle |
Location of slow charging port |
The left rear side of the vehicle |
The left rear side of the vehicle |
External AC discharge power(kW) |
3.3 |
3.3 |
Minimum allowable value of external discharge (%) |
10 |
10 |

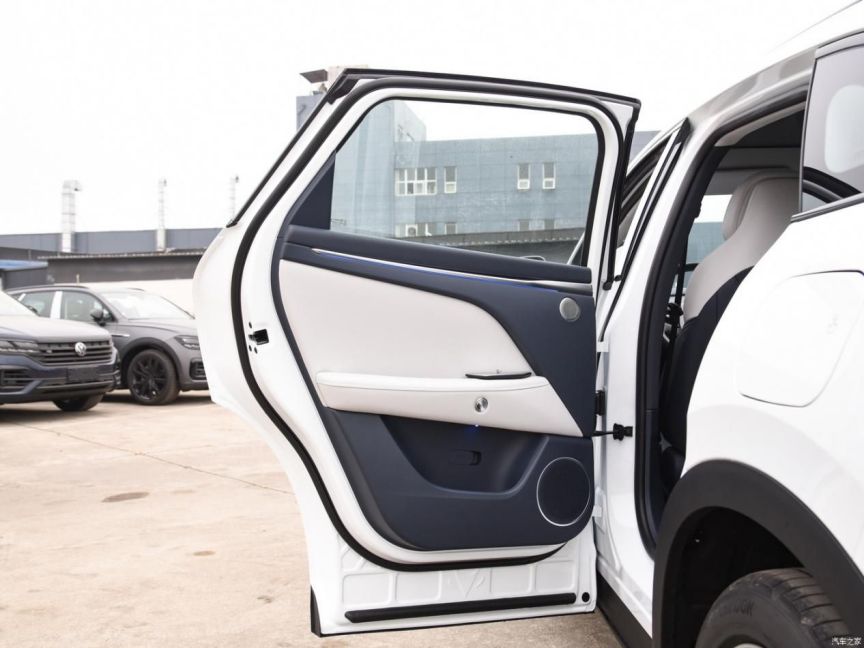

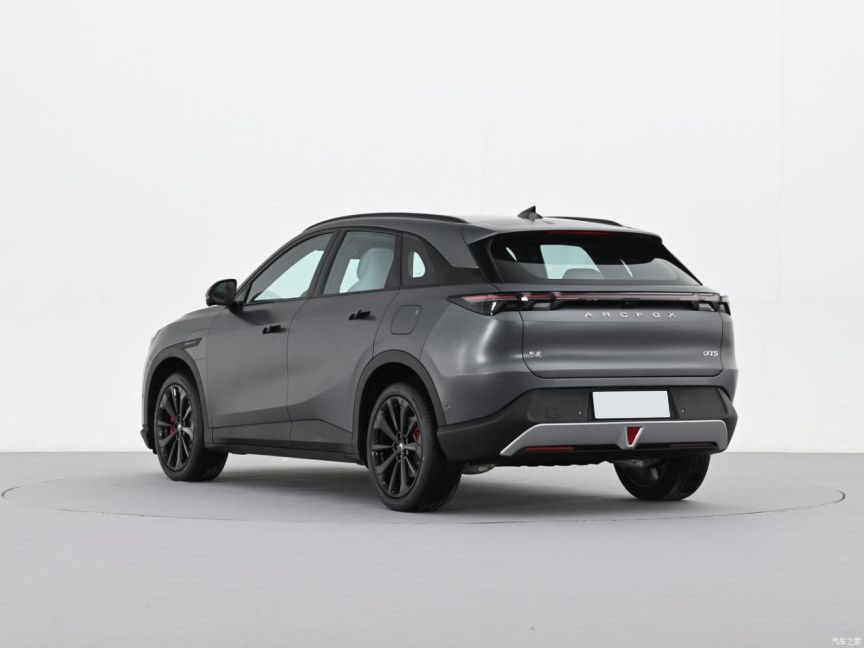

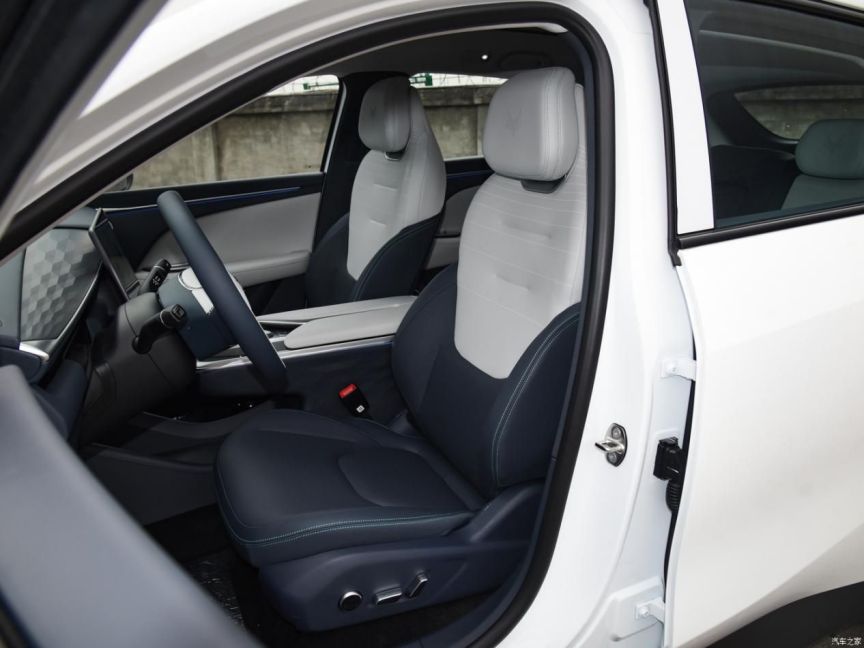

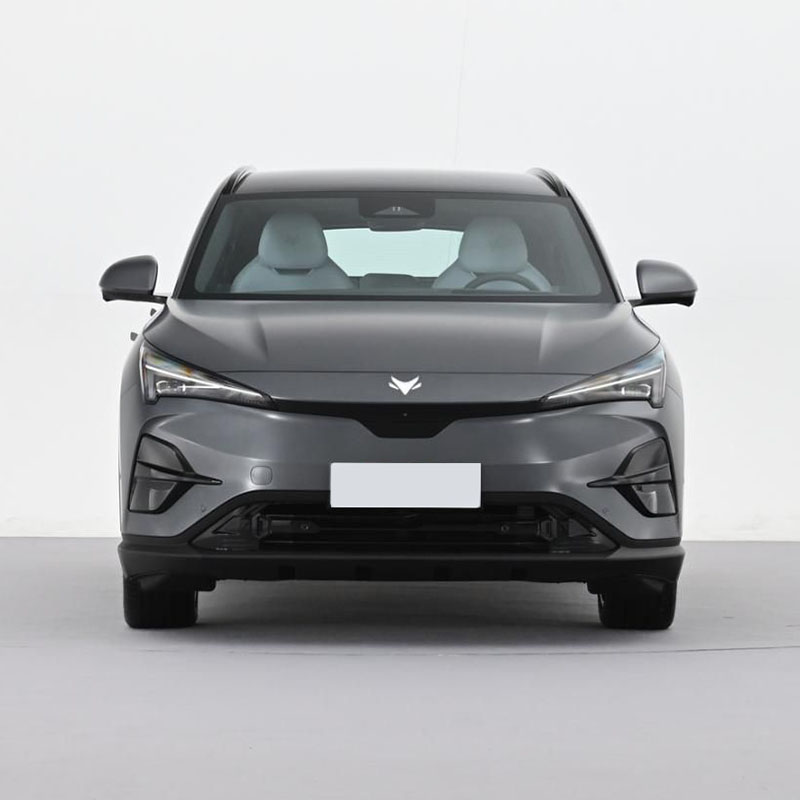

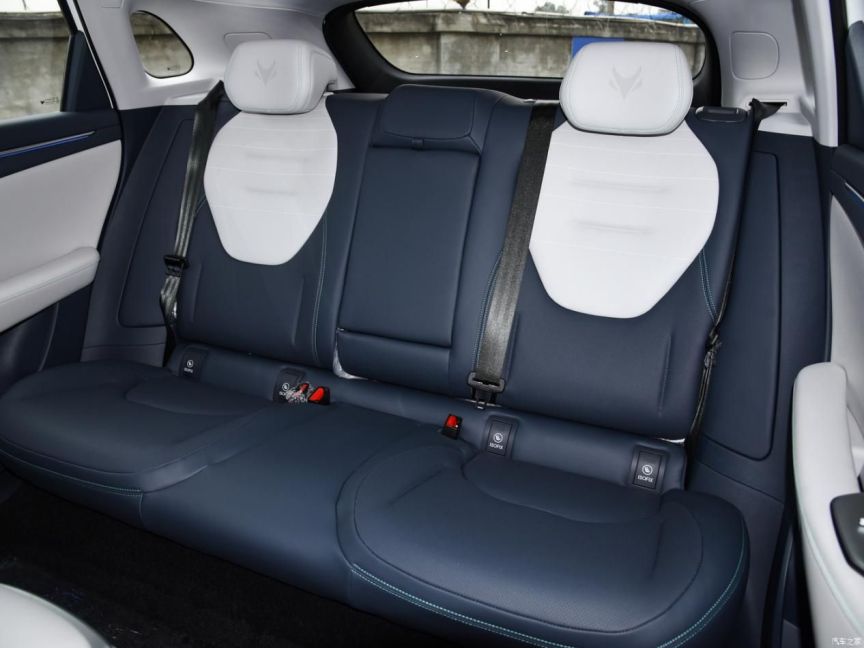

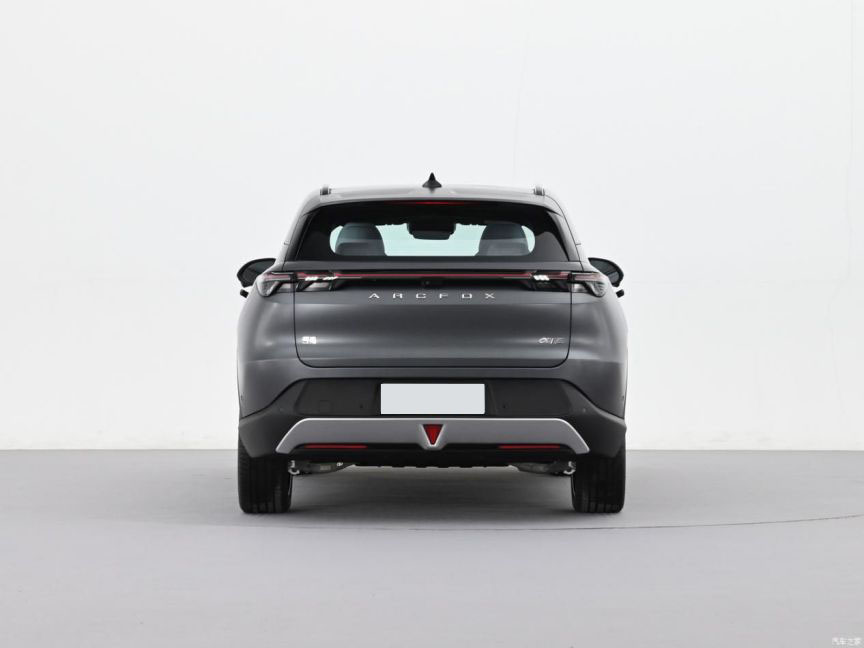

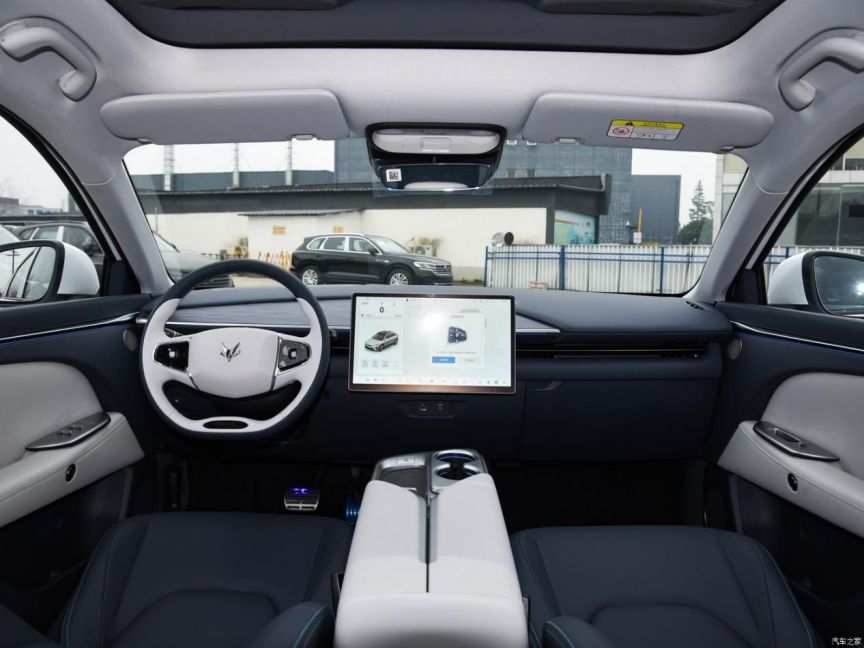

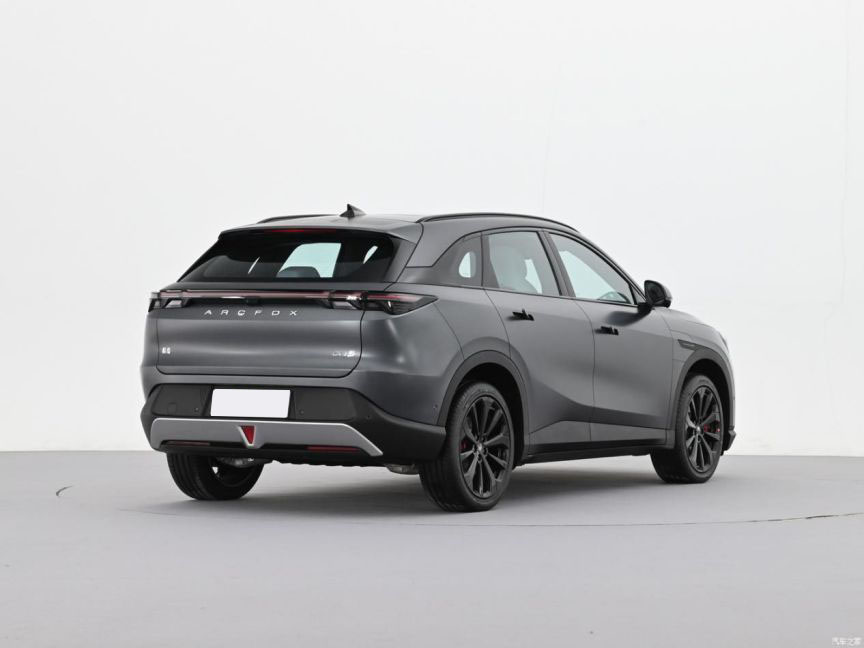

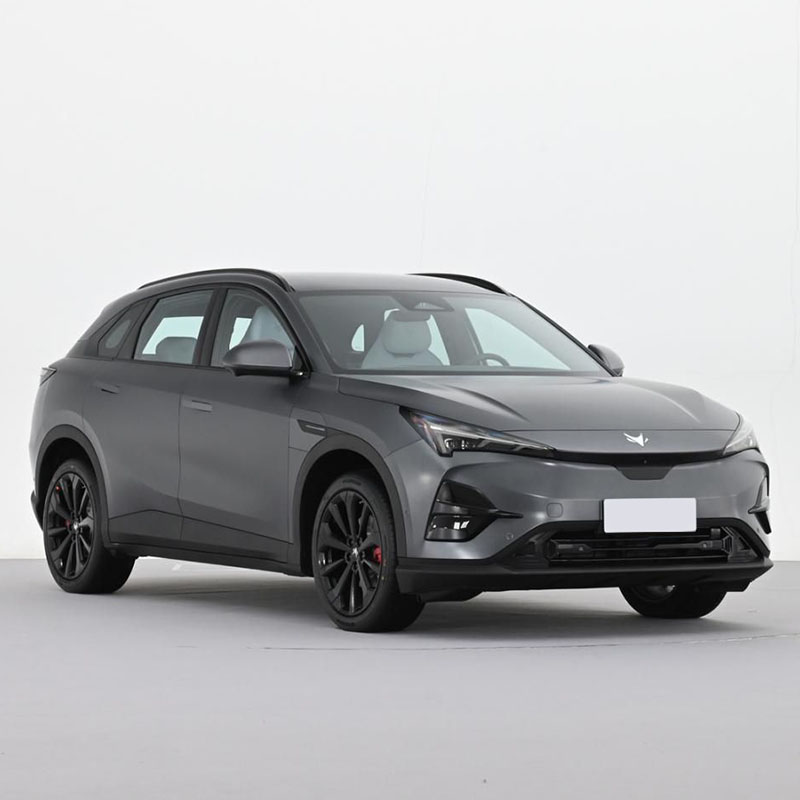

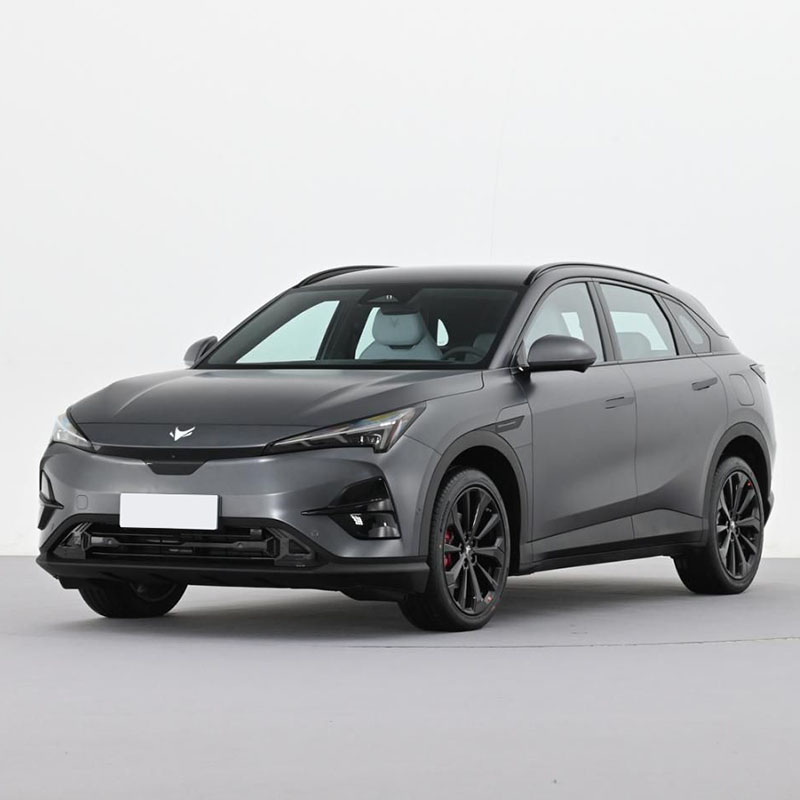

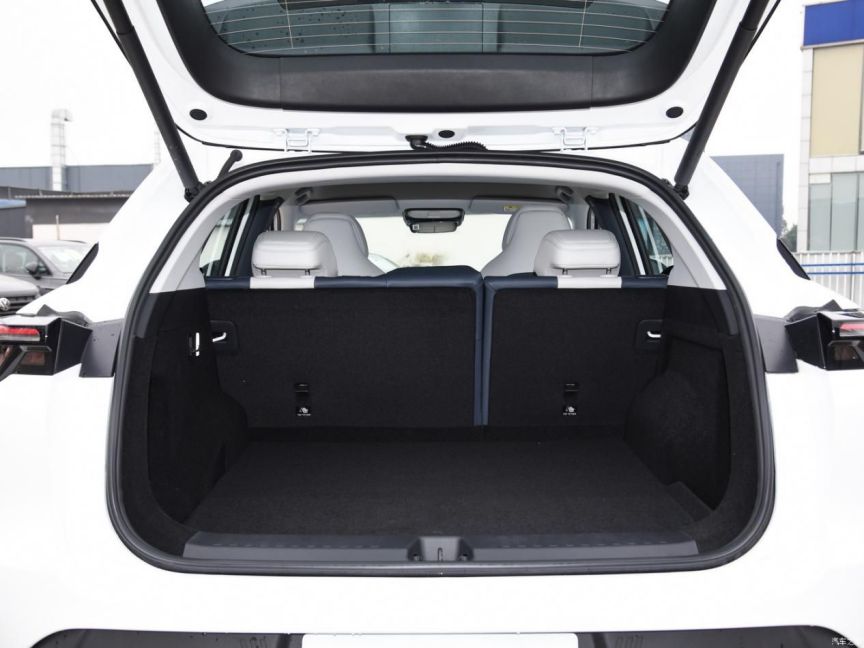

ARCFOXαT5’s detailed pictures as follows:
