1. Introduction of Toyota Corolla Hybrid Electric Sedan

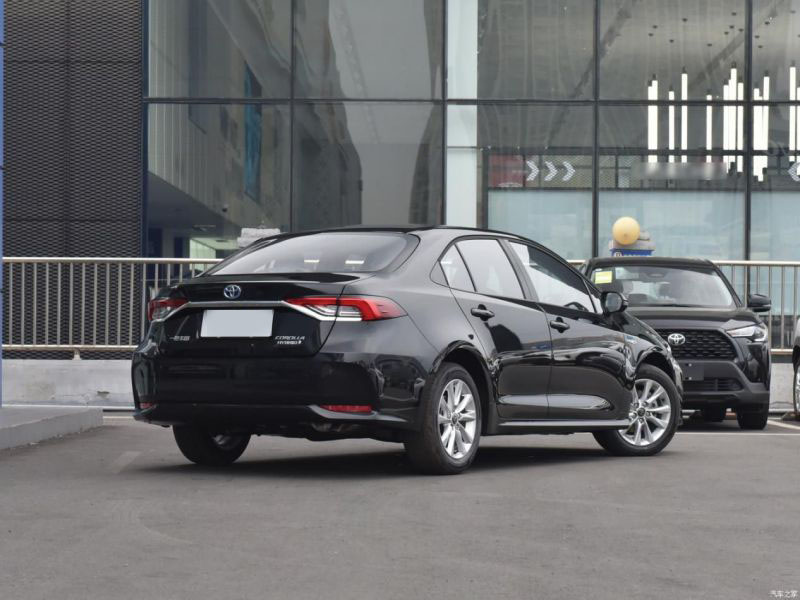

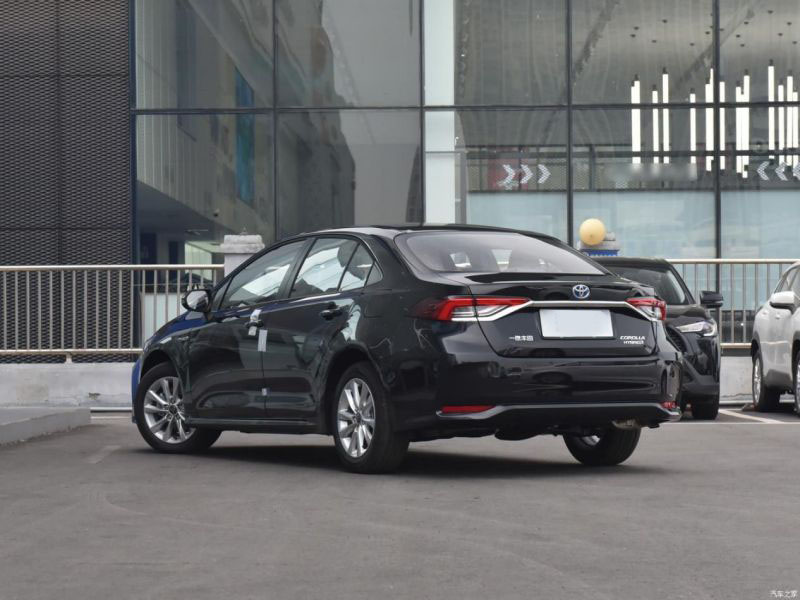

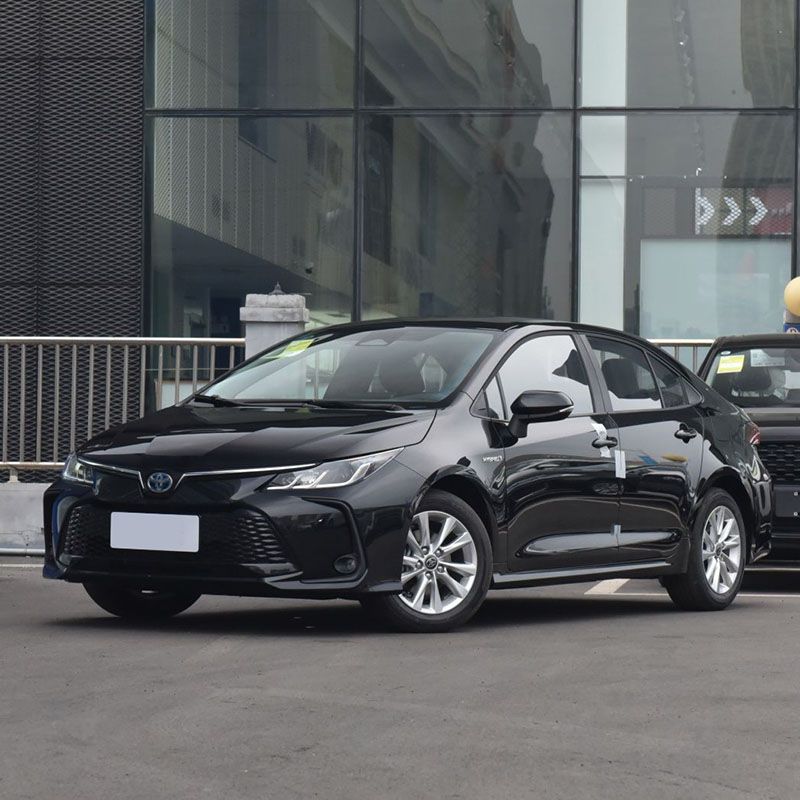

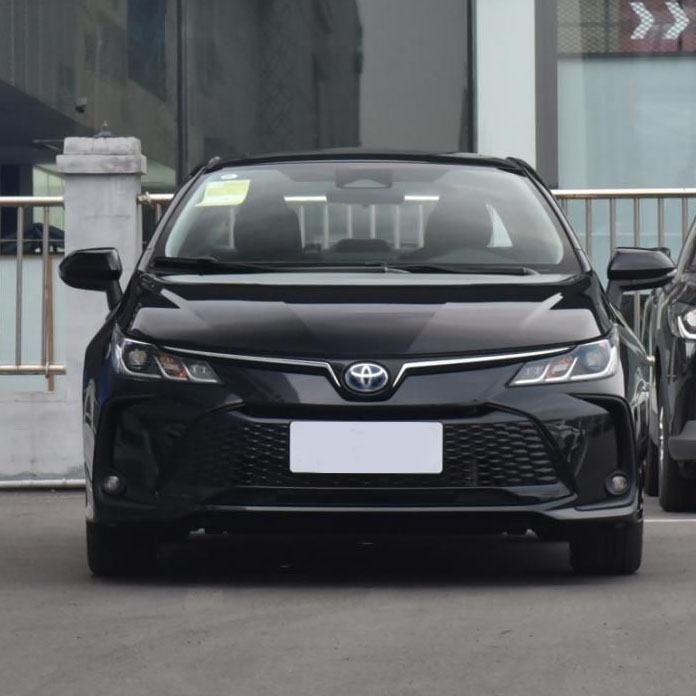

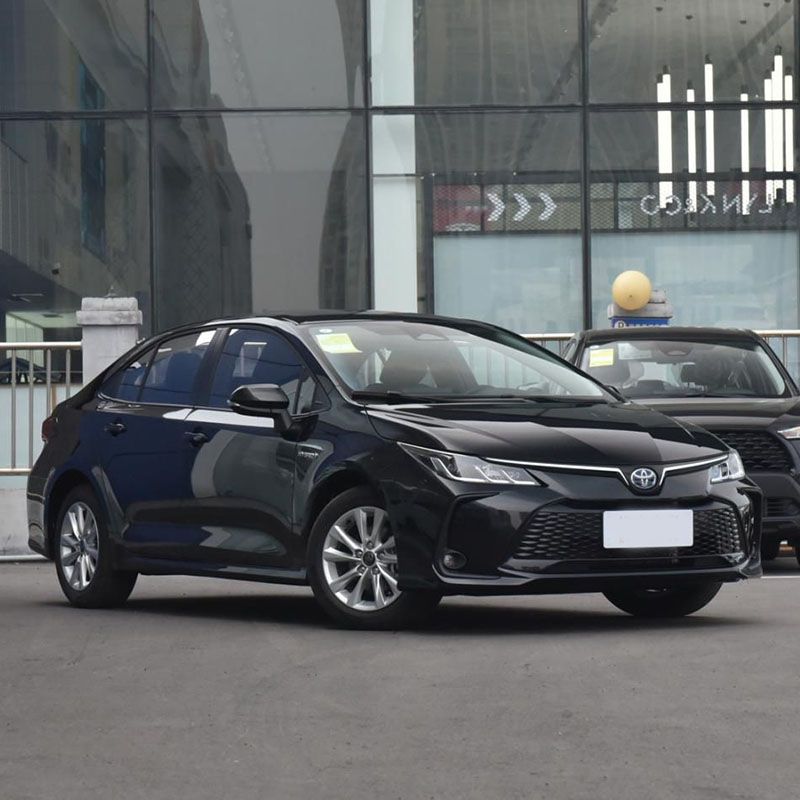

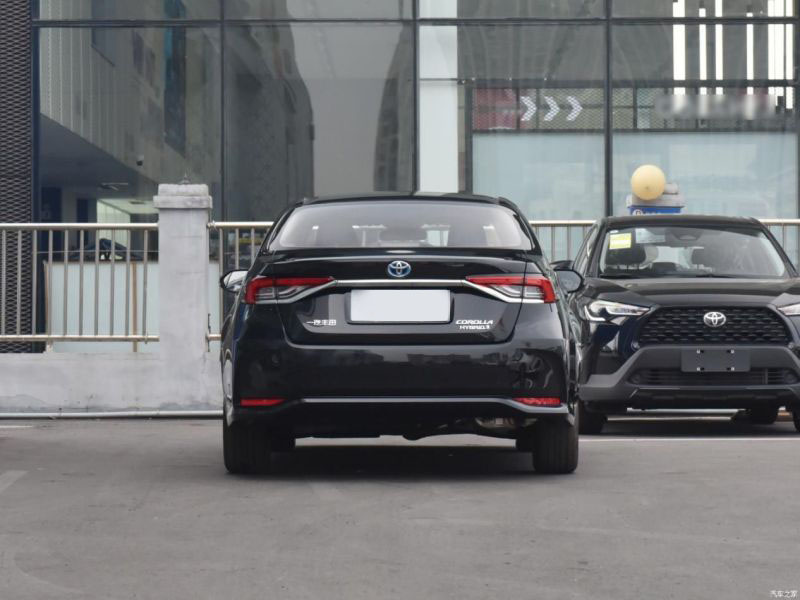

The hybrid version of the Corolla features a wide and tension-filled grille design at the front, with dual "J-shaped" LED headlights adding to its stylish appeal. The front design is modern, with recognizable C-shaped silver chrome accents on the lower sides. At the rear, LED combination taillights and some smoked black elements are used, while the rear bumper also features concave angles, echoing the design of the front. In terms of power, it utilizes a hybrid system comprising a 1.8L engine and an electric motor. The 1.8L engine delivers a maximum power of 90kW and a maximum torque of 142N·m, while the front-mounted single motor provides a total power of 53kW and a total torque of 163N·m, paired with an E-CVT continuously variable transmission. The NEDC combined fuel consumption is 4.1L/100km.
2.Parameter (Specification) of Toyota Corolla Gasoline Sedan
Toyota Corolla 2023 1.8L Intelligent Dual Hybrid Pioneer Edition |
Toyota Corolla 2023 1.8L Intelligent Dual Hybrid Elite Edition |
Toyota Corolla 2023 1.8L Intelligent Dual Hybrid Flagship Edition |
|
Maximum power (kW) |
101 |
||
Maximum torque (N · m) |
— |
||
WLTC Combined Fuel Consumption |
4.06 |
4.07 |
4.28 |
Body structure |
4-Door 5-Seat Sedan |
||
Engine |
1.8L 98 Horsepower L4 |
||
Length * Width * Height (mm) |
4635*1780*1435 |
||
Official 0-100km/h acceleration (s) |
— |
||
Maximum speed (km/h) |
160 |
||
Curb weight (kg) |
1385 |
1405 |
1415 |
Maximum Loaded Mass(kg) |
1845 |
||
Engine model |
8ZR-FXE |
||
Displacement |
1798 |
||
Intake Form |
●Naturally Aspirated |
||
Engine Layout |
●Transverse |
||
Cylinder Arrangement Form |
L |
||
Number of Cylinders |
4 |
||
Valvetrain |
DOHC |
||
Number of Valves per Cylinder |
4 |
||
Maximum Horsepower |
98 |
||
Maximum power (kW) |
72 |
||
Maximum Power Speed |
5200 |
||
Maximum torque (N · m) |
142 |
||
Maximum Torque Speed |
3600 |
||
Maximum Net Power |
72 |
||
Energy Source |
●Hybrid |
||
Fuel Octane Rating |
●NO.92 |
||
Fuel Supply Method |
Direct injection |
||
Cylinder Head Material |
● Aluminum alloy |
||
Cylinder Block Material |
● Aluminum alloy |
||
Environmental Standards |
●Chinese VI |
||
Motor type |
rear permanent magnet/synchronous |
||
Total power of electric motor (kW) |
83 |
||
Total torque of electric motor (N-m) |
206 |
||
Number of driving motors |
Single Motor |
||
Motor layout |
Front |
||
Battery type |
●Triple lithium Battery |
||
for short |
E-CVT (Electronic Continuously Variable Transmission) |
||
Number of gears |
Continuous Variable Transmission |
||
Transmission type |
Electrical Continuously Variable Transmission Box |
||
Driving method |
● Front-Wheel Drive |
||
Front suspension type |
●MacPherson independent suspension |
||
Rear suspension type |
●E-Type Multi-Link Independent Suspension |
||
Assistance type |
●Electric power assistance |
||
Vehicle structure |
Load bearing type |
||
Front brake type |
●Ventilation disc type |
||
Rear brake type |
●Disc type |
||
Parking brake type |
●Electronic parking |
||
Front tire specifications |
●195/65 R15 |
●205/55 R16 |
●225/45 R17 |
Rear tire specifications |
●195/65 R15 |
●205/55 R16 |
●225/45 R17 |
Spare tire specifications |
●Non-Full Size |
||
Driver/passenger seat safety airbag |
Main ●/Sub ● |
||
Front/rear side air wrap |
Front ●/Back— |
||
Front/rear head airbags (air curtains) |
Front ●/Back ● |
||
Knee Airbag |
— |
||
Front Passenger Seat Cushion Airbag |
— |
||
Tire pressure monitoring function |
● Tire pressure display |
||
Underinflated tires |
一 |
||
Reminder of seat belt not fastened |
● All vehicles |
||
ISOFIX child seat interface |
● |
||
ABS anti lock braking |
● |
||
Brake force distribution (EBD/CBC, etc.) |
● |
||
Brake Assist (EBA/BAS/BA, etc.) |
● |
||
Traction control (ASR/TCS/TRC, etc.) |
● |
||
Vehicle stability control (ESC/ESP/DSC, etc.) |
● |
||
Lane departure warning system |
● |
||
Active braking/active safety system |
● |
||
Fatigue driving tips |
— |
||
Forward collision warning |
● |
||
Low-Speed Warning |
● |
||
Road rescue call |
● |
3.Details of Toyota Camry Gasoline Sedan
Toyota Camry Gasoline Sedan’s detailed pictures as follows:
